final boards

Final Presentation

i would like to thank all of my online reviewers for all of there help and support during this program.

site plan

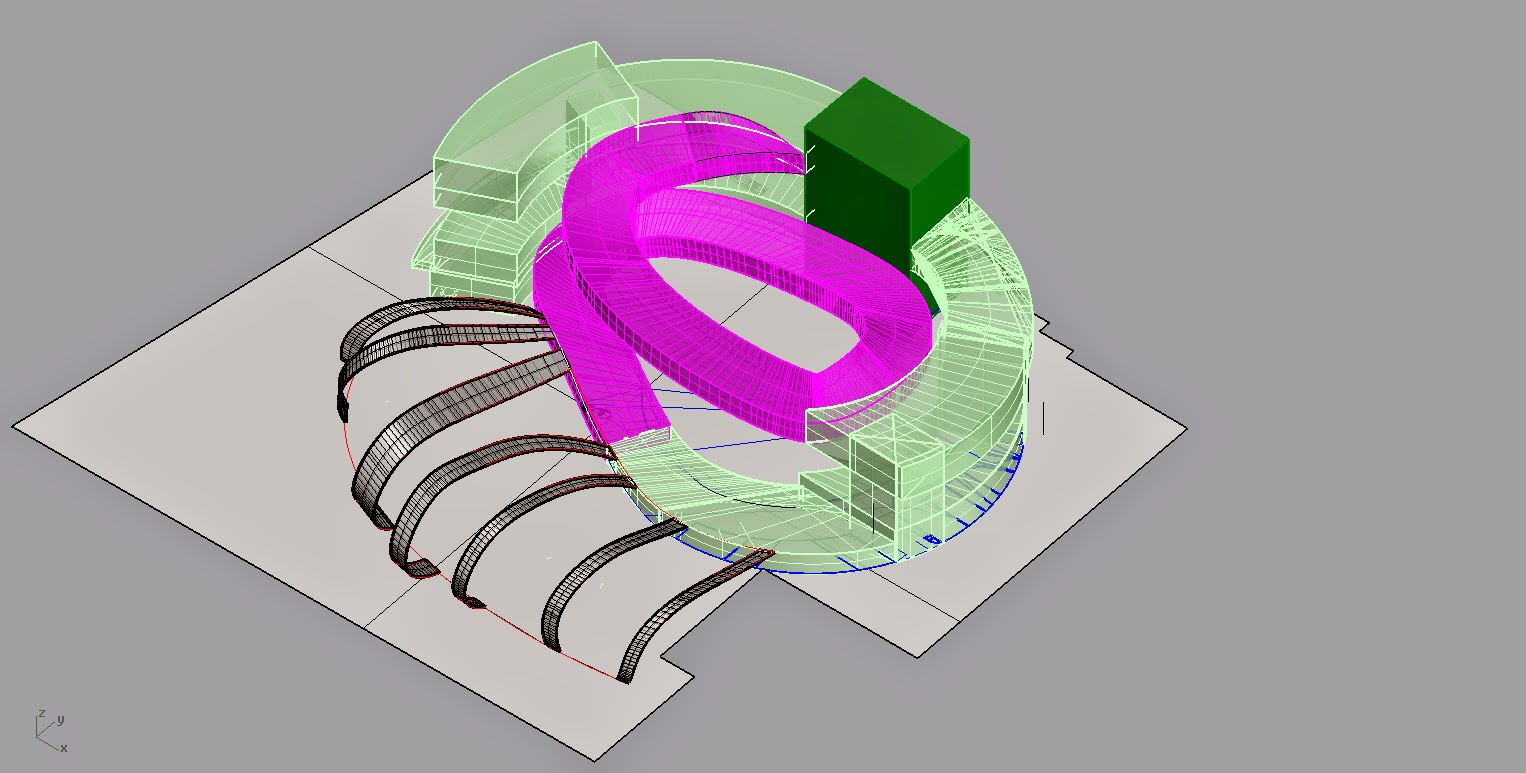

3d model

rendering of my model

visual corridor

With my last visual corridor i felt think it wasn't ready and need more work to be done to it so i started to make small changes to it. i made four different visual corridor. my 3d model is also ready to 3d print , i will be posting the model when it done next week.

                                         1.

                                             2.

                                            3.the area that are see throw would be glass

                                                4.    the area that are see throw would be glass

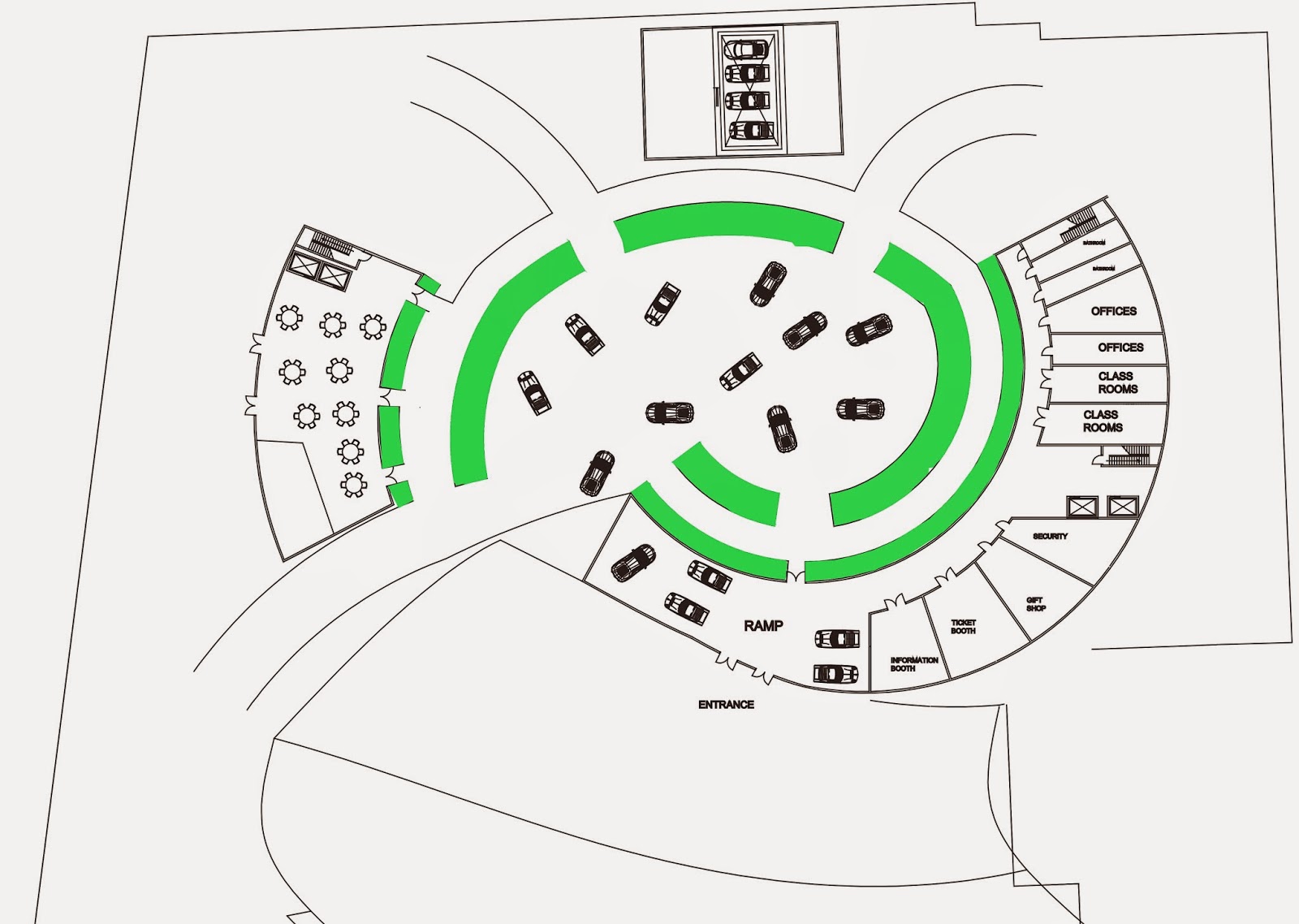

updated floor plans and landscaping

These are some landscaping ideas that i am trying out, the first one was what i made in the hand drawing , the second on i was trying to include the curves from the building. As you can see i try to add allot of green space because i want the space to be inviting. The first floor also now has a lunch room area on the left side which is also open to the pubic.

 The second floor has exhibit space and a restaurant , guest are also able to go outside on to the deck and get a view of the city.

 The third floor is where the auditorium space, before it was pretty small but i made it bigger by moving the bathroom to the other side by the stairs

The third floor is the main exhibit floor.
